These vacuum microfiltration assemblies are designed to handle up to 500ml of sample liquids for the analysis of particulate or microbiological contamination.
With Glass Support

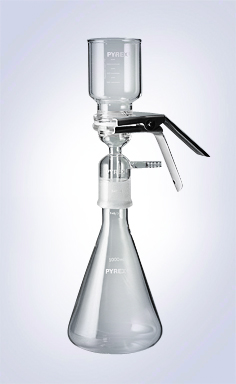

Used for general filtration. This unit is supplied with a coarse fritted glass support base, 300ml graduated funnel, anodized aluminum clamp and a No. 8 silicone stopper.
| Cat. No. |
Support type |
Graduated funnel Capacity (ml) |
Filter size (mm)
|
Approx.overall height x diameter (mm)
|
| 1230.00.00 |
Fritted Glass |
300 |
47 |
229 x 76 |
| Components: |
|
| 1230/C1 |
(1) Glass funnel, 47mm, 300ml |
| 1230/C2 |
(2) Anodized aluminum clamp, 47mm |
| 1230/C3 |
(3) Fritted glass support base, 47mm |
| 1230/C4 |
(4) No. 8 silicone stopper, for use with 1000ml filtration flask |
| Accessories: |
|
| 1230/A1 |
Glass funnel, 47mm, 100ml |
| 1230/A2 |
Glass funnel, 47mm, 500ml |
| 1230/A3 |
Glass funnel, 47mm, 1000ml |
| 1230/A4 |
Filtration flask, 1000ml, No. 8 stopper joint |
| 1230/A5 |
Filtration flask, safety-coated, 1000ml, No. 8 stopper joint |
| 1230/A6 |
PVC filtration manifold, 3-place |
| 1230/A7 |
PVC filtration manifold, 6-place |
