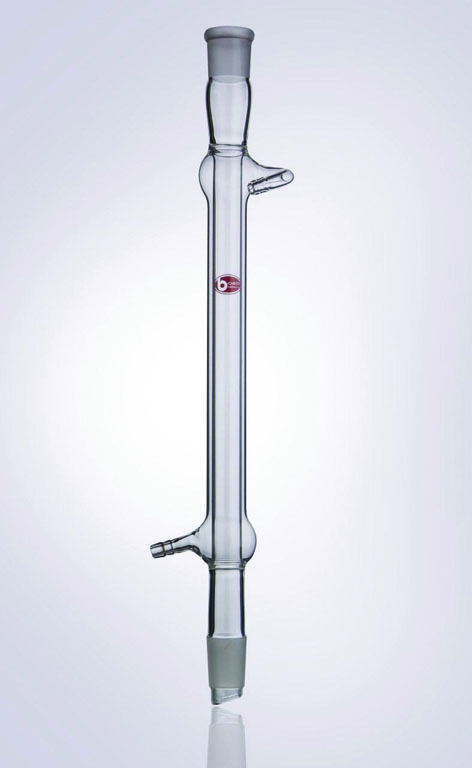

Liebig Condensers
Material : Schott Duran Germany and Iwaki Pyrex Japan
Borosilicate glass 3.3
A condenser designed to give turbulent flow in the water jacket with a comparatively slow rate of flow of coolant water by use of a small annular space.Although the condensing area per unit length of jacket is small , this type of condenser is widely use.It is relatively inexpensive and for many applications is adequate and effective .
| Cat. No. | Socket Size | Cone Size | Approx.effective Length (mm) | Approx.Overall Length (mm) |
| C12.00/60 | 10/19 | 10/19 | 60 | 135 |
| C12.11/155 | 14/23 | 14/23 | 155 | 260 |
| C12.22/208 | 19/26 | 19/26 | 208 | 340 |
| C12.22/250 | 19/26 | 19/26 | 250 | 380 |
| C12.33/250 | 24/29 | 24/29 | 250 | 390 |
| C12.33/200 | 24/29 | 24/29 | 200 | 340 |
| C12.33/300 | 24/29 | 24/29 | 300 | 440 |
| C12.33/350 | 24/29 | 24/29 | 350 | 490 |
| C12.33/400 | 24/29 | 24/29 | 400 | 540 |
| C12.44/250 | 29/32 | 29/32 | 250 | 400 |
| C12.22/378 | 19/26 | 19/26 | 378 | 530 |
| C12.22/350 | 19/26 | 19/26 | 350 | 490 |
| C12.33/395 | 24/29 | 24/29 | 395 | 535 |
| C12.44/400 | 29/32 | 29/32 | 400 | 550 |
| C12.55/500 | 34/35 | 34/35 | 500 | 640 |
Others Size On Request
