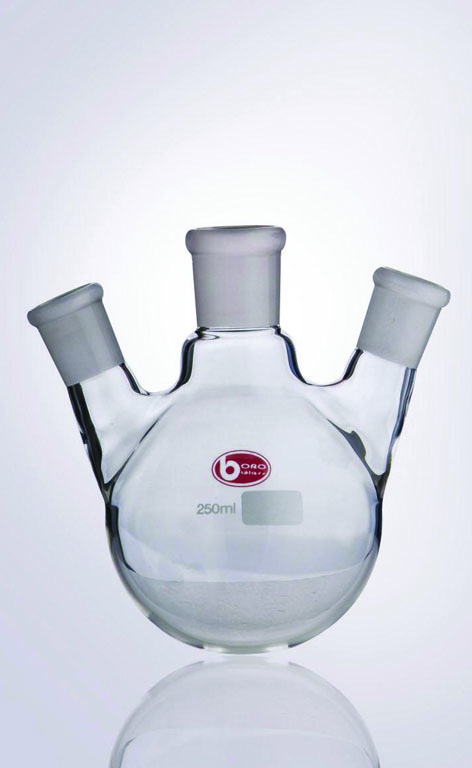

Round Bottom Flask – Three Necks

Round Bottom Flask – Three Necks

Specifications

Material : Schott Duran Germany and Iwaki Pyrex Japan

Borosilicate glass 3.3

Centre neck and two angled side necks

The axes of the side necks meet the axis of the centre neck at the bottom of the flask.

Cat. No.	Norminal Capacity (ml)	Centre Socket Size	Side Socket Size (Angled)	Approx.Overall height (mm)
FR3.100/2S/11A	100	19/26	14/23	108
FR3.100/3S/11A	100	24/29	14/23	110
FR3.100/3S/22A	100	24/29	19/26	110
FR3.250/2S/22A	250	19/26	19/26	128
FR3.250/3S/11A	250	24/29	14/23	130
FR3.250/3S/22A	250	24/29	19/26	130
FR3.250/4S/11A	250	29/32	14/23	135
FR3.250/4S/22A	250	29/32	19/26	135
FR3.500/3S/11A	500	24/29	14/23	150
FR3.500/3S/22A	500	24/29	19/26	150
FR3.500/4S/11A	500	29/32	14/23	153
FR3.500/4S/22A	500	29/32	19/26	153

Cat. No. PYREX	Norminal Capacity (ml)	Centre Socket Size	Side Socket Size (Angled)	Approx.Overall height (mm)
FR3.1L/3S/11A	1000	24/29	14/23	180
FR3.1L/3S/22A	1000	24/29	19/26	180
FR3.1L/4S/22A	1000	29/32	19/26	183
FR3.1L/4S/44A	1000	29/32	29/32	183
FR3.1L/5S/22A	1000	34/35	19/26	195
FR3.2L/3S/22A	2000	24/29	19/26	205
FR3.2L/5S/22A	2000	34/35	19/26	228
FR3.3L/5S/22A	3000	34/35	19/26	249

Others Size On Requests
