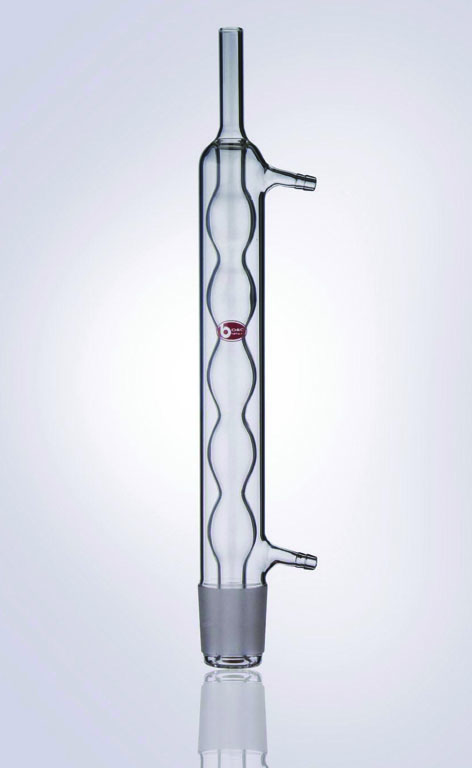

Allihn Condenser
An inexpansive condenser, giving greater surface area than the corresponding Liebig type due to the bulb sections.
This type is normally used for distillation provided it is set at an angle which prevents liquid hold up in the bulbs.
Material: Borosilicate glass 3.3
| Cat. No. | Socket size | Cone size | Approx. effective length (mm) | Approx. overall length (mm) |
| C01.X2 | – | 19/26 | 250 | 400 |
| C01.X3 | – | 24/29 | 250 | 405 |
| C01.X4 | – | 29/32 | 250 | 415 |
| C01.X5 | – | 34/35 | 250 | 335 |
| C01.X6 | – | 40/38 | 250 | 365 |
| C01.X8 | – | 50/42 | 250 | 365 |
| C01.X33 | 24/29 | 24/29 | 400 | 545 |
